How do I attach the tank bag to my R 1300 GS Adventure?

To attach the tank bag to your R 1300 GS Adventure, please follow the steps below:

1. Please tilt the tank bag backwards by approx. 45 degrees.

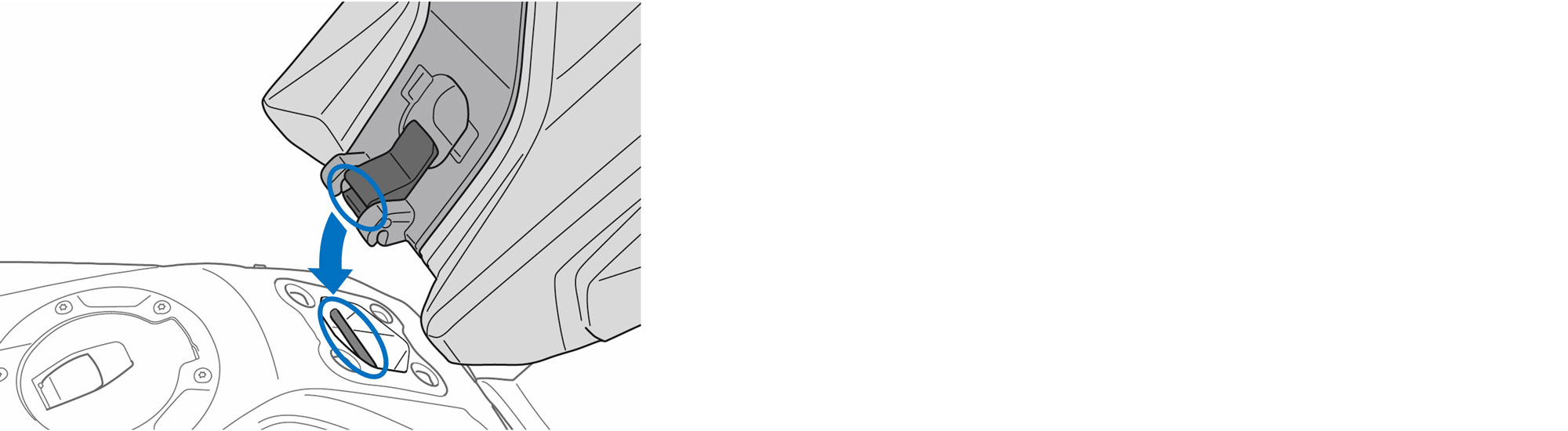

2. Snap the lower rear side onto the bar provided on the R 1300 GS Adventure.

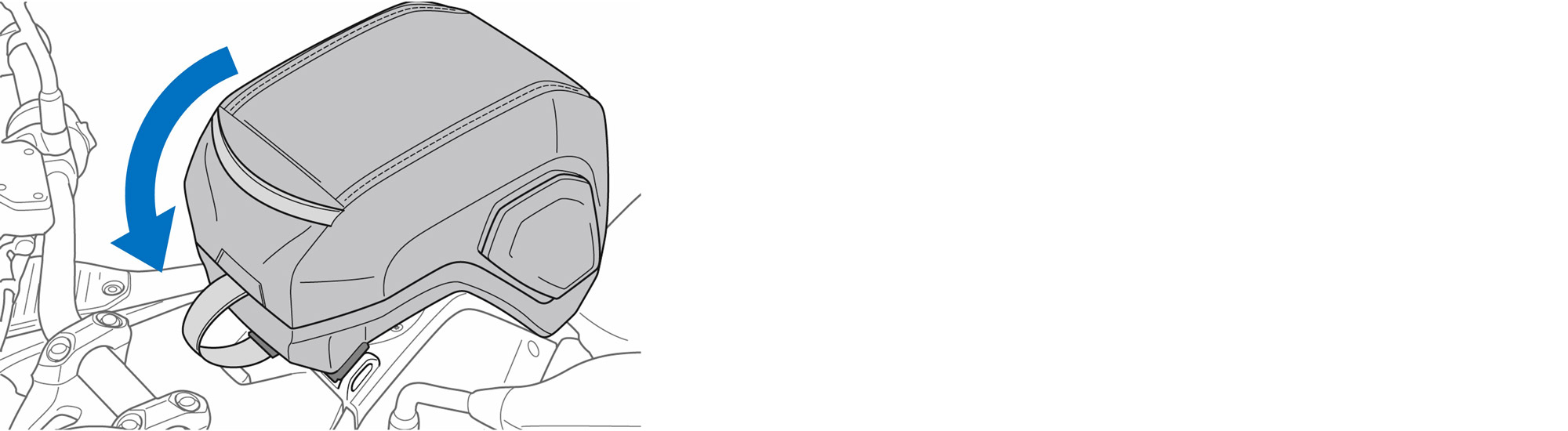

Tilt the tank bag forwards until it engages with an audible click.

The tank bag is now securely attached to your R 1300 GS Adventure.

To remove the tank bag from your R 1300 GS Adventure, please follow these steps:

1. Please pull the front strap that is attached to the tank bag.

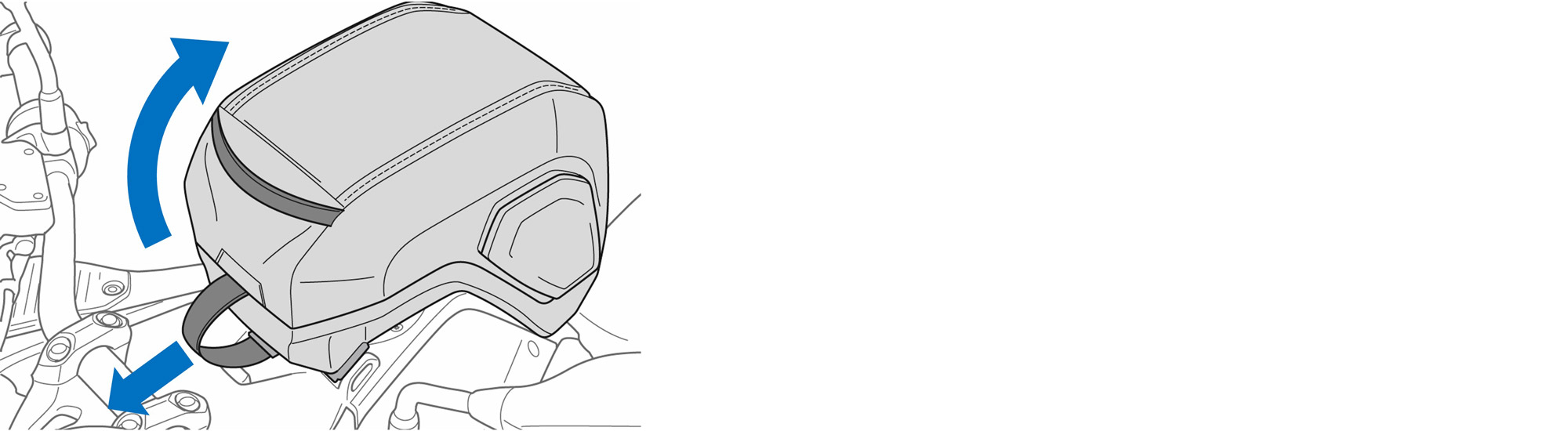

2. Tilt it backwards by approx. 45 degrees.

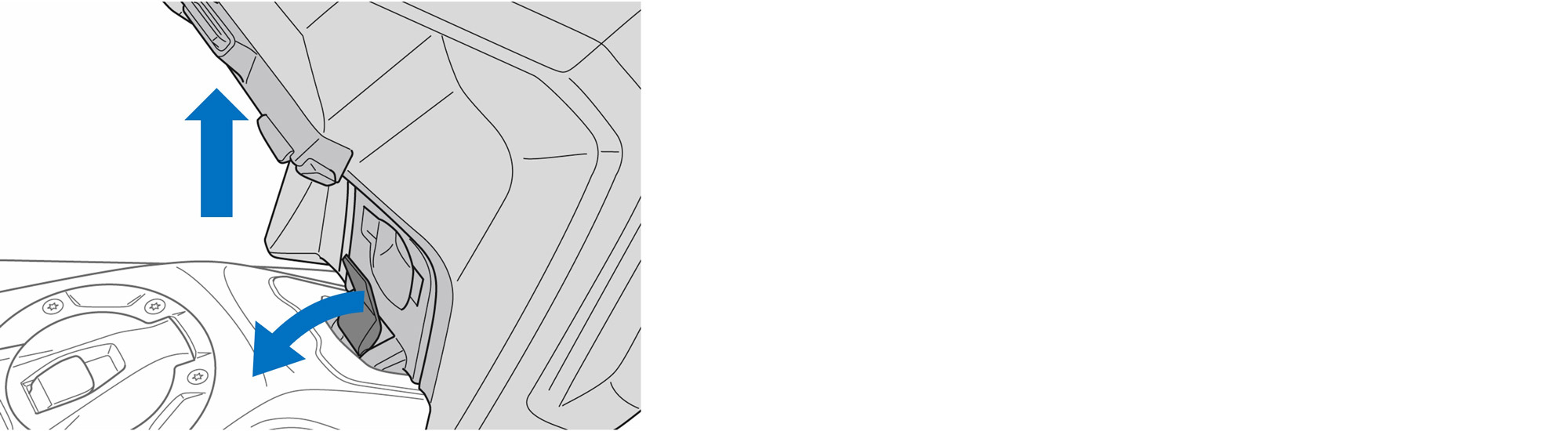

Please pull the flap on the connection between the tank bag and your motorbike forwards.

Now you can remove the tank bag from your R 1300 GS Adventure.

Please note:  The maximum payload of the tank bag is 5 kg. The maximum permitted speed is 130 km/h.

Find out more about the storage options of the R 1300 GS Adventure in this video:
