How do I open or close the aluminium case on the R 1300 GS Adventure?

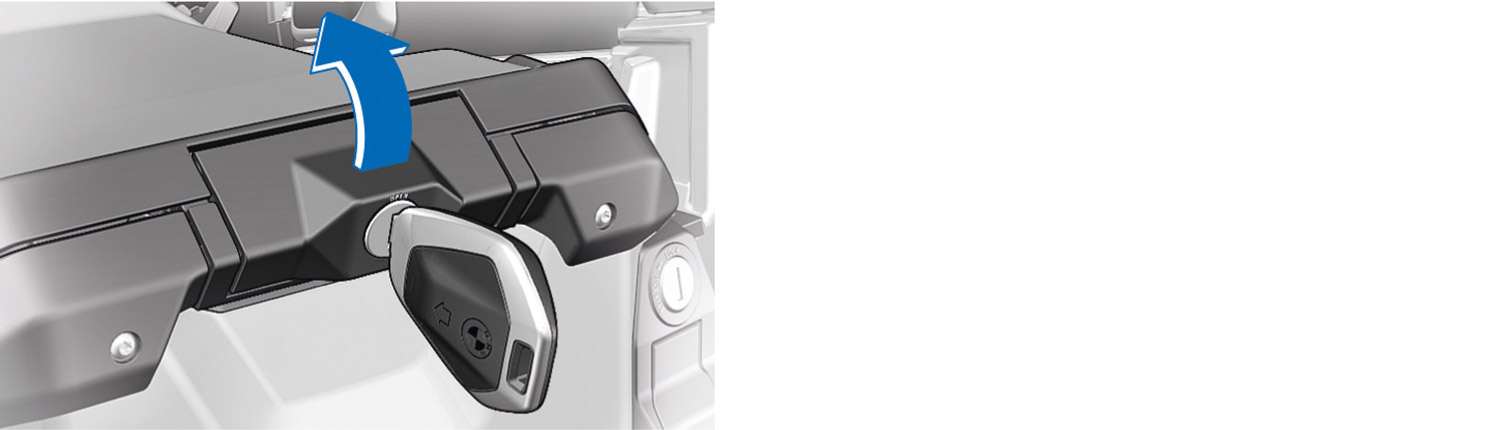

To open the aluminium case:

1. Turn the key to the "Open" position > the aluminium case is unlocked.
2. Fully open the locking flap.
3. Open the aluminium case lid.

Close the aluminium case:

1. Close the aluminium case lid.
2. Fully close the locking flap.
3. Turn the key to the "LOCK" position -> the aluminium case is locked.

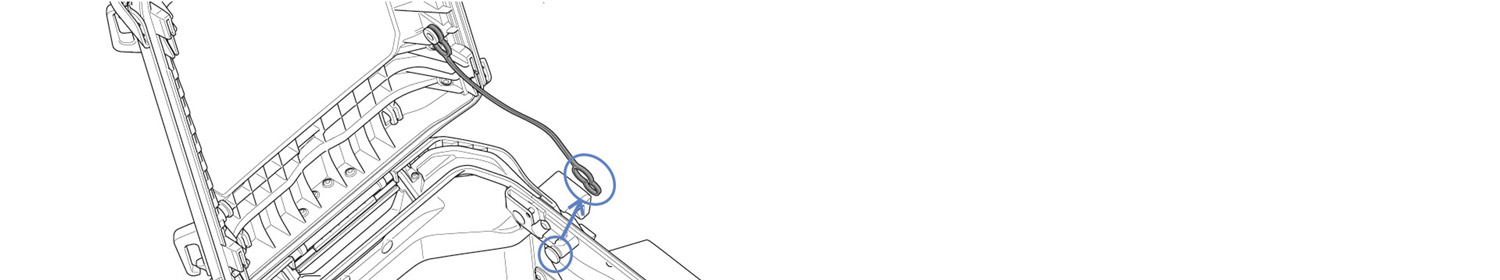

Remove the aluminium case lid:

1. Open the aluminium case as described above.
2. Detach the securing band.

Press the latch upwards and detach the aluminium case lid upwards.

Attach the aluminium case lid:

1. Press the latch upwards and hook the aluminium case lid downwards.
2. Attach the securing band.
3. Close the aluminium case as described above.

Find out more about the storage options of the R 1300 GS Adventure in this video:
